Installation and first use

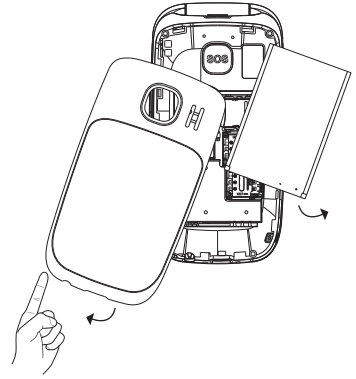

Lift the battery cover using the tab at the bottom of the telephone, and the battery by lifting up on the notch at the top of the battery compartment.

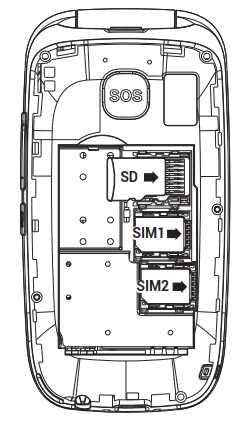

Insert the SIM card(s) (NanoSIM format) in the indicated position, matching the metallic contacts of the telephone and the card(s).

If applicable, insert the Micro SD memory card in the indicated position.

Insert the battery by matching the gold contacts on the phone and the battery.

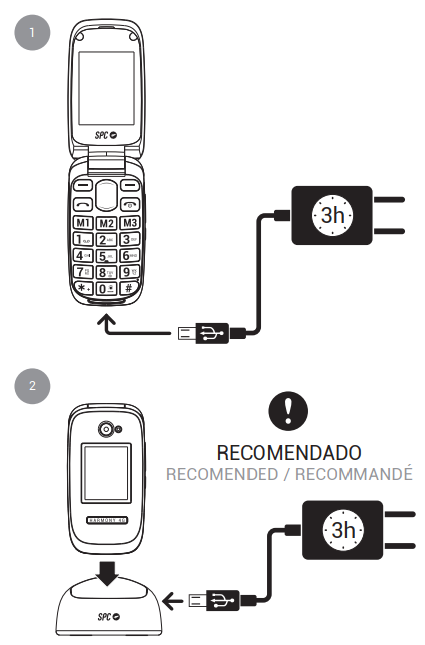

To charge the terminal, connect the power adapter to the charging base. Check the orientation of the connector and do not force the connection if it does not connect immediately.

You can also connect the power supply to the telephone's USB C connector located at the bottom of the telephone. As before, check the orientation of the connector and do not force the connection if it is not immediate.

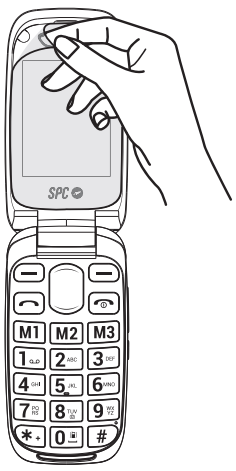

Before you start using it, remember to remove the screen protector.

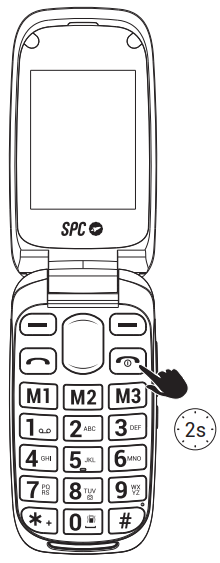

Power key for a few seconds to turn on the telephone. Enter the PIN that appears on your SIM card. If two SIM cards are inserted, the telephone will ask for the PIN of SIM 1 first and then SIM 2.

Press and hold this key to turn the telephone off.

NOTE: The personal identification number (PIN) protects the SIM card from unauthorised use. The PIN unlocking key (PUK number) allows you to unlock a blocked PIN. The PIN and PUK are provided with the SIM card. For more details, contact your operator.
