Installation and commissioning

Lift the battery cover and the battery, using the tab on the bottom of both the phone and the battery itself.

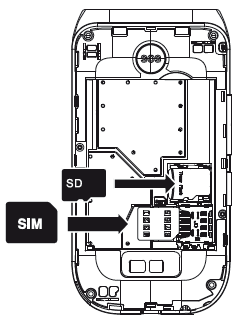

Insert the SIM and SD cards by matching the gold contacts on the phone and the cards as follows:


Insert the battery by matching the gold contacts on the phone and the battery. Attach the back cover.


To charge the handset, connect the power supply to the micro USB connector on the bottom of the phone. Check the orientation of the connector and do not force the connection if it is not immediate.




You can also connect the power supply to the charger unit. As before, check the orientation of the connector and do not force the connection if it is not immediate.


Before you start using it, remember to remove the screen protector.





mceclip2.png Press and hold the power key for a few seconds to switch the phone on. Enter the PIN provided with your SIM card.

To switch off the phone, press and hold down the power key.

Once the phone is switched on for the first time, the phone will ask for configuration information (Language, Wi-Fi network, location and licence) and display a short tutorial on how to use the KaiOS operating system.

NOTE: The Personal Identification Number (PIN) protects the SIM card from unauthorised use. The PIN Unblocking Key (PUK number) allows you to unblock a blocked PIN. The PIN and PUK are supplied with the SIM card. For more details, contact your operator.
