FIRST USE
This device has an ABC CO2 sensor (Automatic Baseline Calibration). This means that the equipment will need 24 hours after the first start-up to obtain a base value and be able to give appropriate measurements. After this first calibration, the equipment stores it in its internal memory and verifies that the value is correct on a daily basis.
The first time you use the equipment, leave it charging in a well-ventilated environment for 24 hours. When charging, the battery icon light will alternate between green-orange-red. When it is 100%, it will stay green.

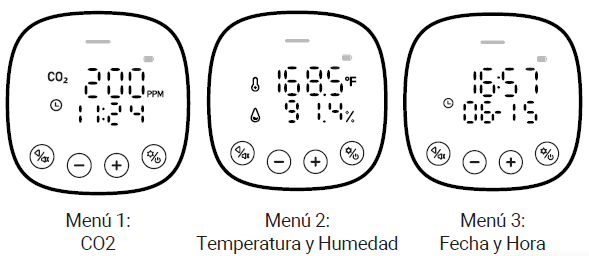

1. When the detector is turned on, it will display the "CO2" screen.
2. In standby or normal mode, press "+" or "-" button to go to the next/previous page.
1. In normal mode, switch the screen with one touch.
2. In setting mode, move the position to the left or decrease the value by one.
1. In normal mode, switch the screen with one touch.
2. In setting mode, move the position to the right or increase the value by one.
1. In normal mode, mute with one press. Press it once more to exit silent mode.
2. In the setting mode, return to the previous page or exit the current setting.
1. On/off by holding down (5 seconds approx.).
2. When powered by AC adapter, in normal mode, it turns the screen on/off with one press.
3. Hold down at the same time for approx. 2 seconds to enter configuration mode.
4. In setting mode, save settings with one touch.
