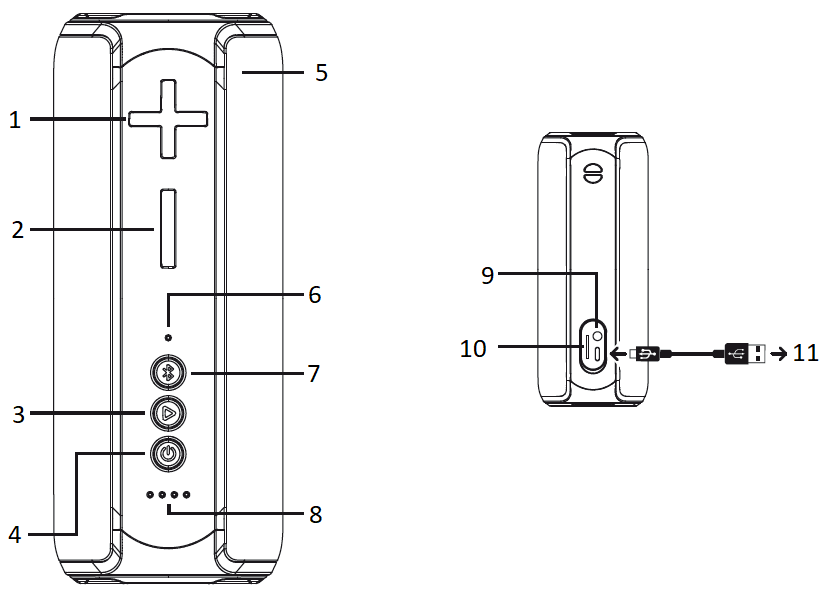

Components and controls

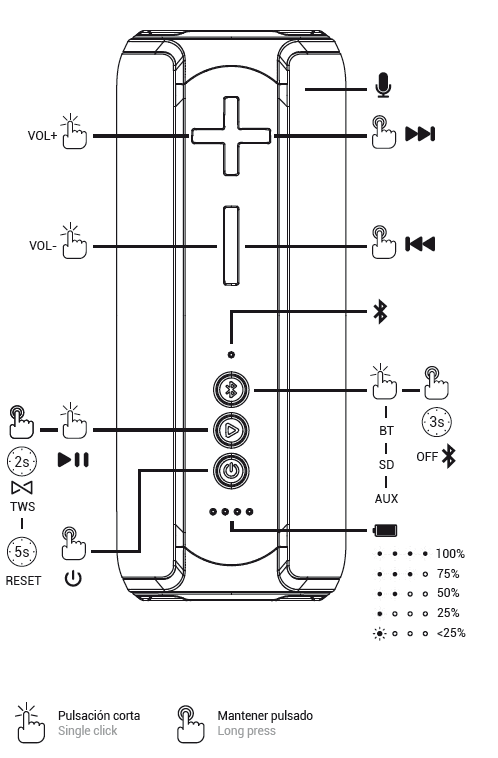

  1. add: Press to increase volume. Press and hold for next song.
  2. remove: Press to reduce the volume. Press and hold for previous song.
  3. play_arrow: Press to start or pause playback
  4. power_settings_new: On and off the button for the device.
  5. mic: Internal microphone, activated when you are in hands-free mode, during a phone call.
  6. BT indicator: When there is no BT device connected, it flashes white. When a device is connected or SD or AUX music is playing, it stays white.
  7. bluetooth: Press to turn the top light ring on or off. Press and hold to unpair the connected BT device.
  8. LED charge status indicator: With the cable connected; On-charging and Off-charged

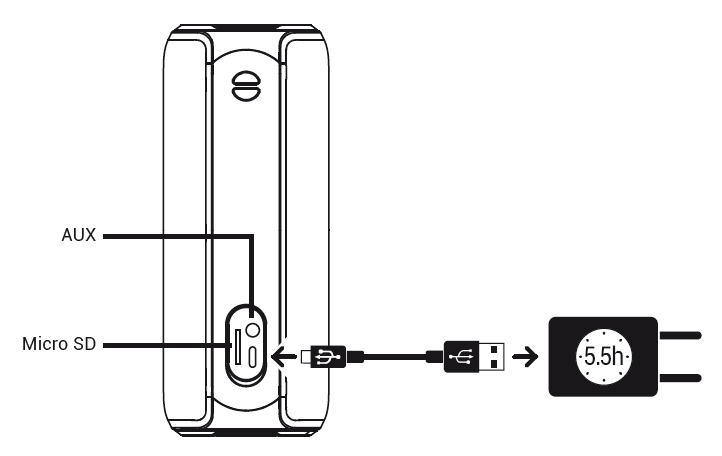

  9. AUX: Use the standard 3.5 audio cable to connect external audio sources.
  10. Micro SD slot
  11. DC 5V: Connect the USB type C cable to charge the device.
