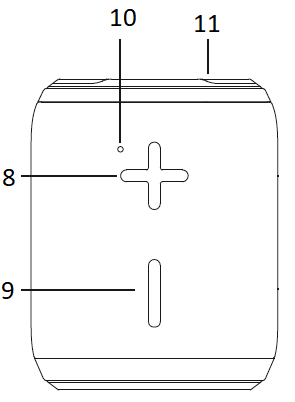

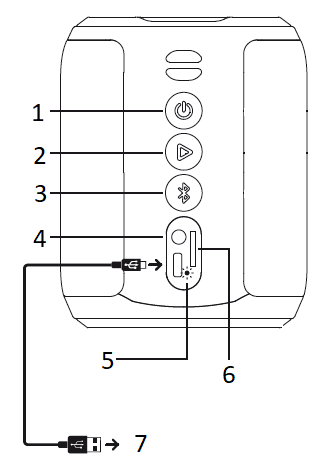

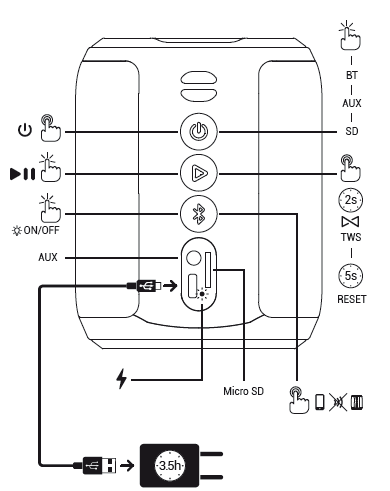

Components and controls


  1. power_settings_new: On and off the button for the device.
  2. play_arrow: Press to start or pause playback
  3. bluetooth : Press to turn the top light ring on or off. Press and hold to unpair the connected BT device.
  4. AUX: Use the standard 3.5 audio cable to connect external audio sources..
  5. LED charge status indicator: With the cable connected; On-Charging and Off-Charged
  6. Micro SD slot
  7. DC 5V: Connect the USB type C cable to charge the device.

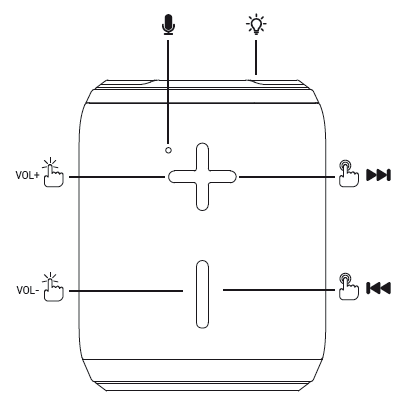

  8. add: Press to increase volume. Press and hold for next song.
  9. remove: Press to reduce the volume. Press and hold for previous song.
  10. mic: Internal microphone, activated when you are in hands-free mode, during a phone call.
  11. Light ring: When there is no BT device connected, it flashes white. When a device is connected or SD or AUX music is playing, it changes colour and intensity depending on the music. You can turn it off by pressing the BT button
