Installation and commissioning

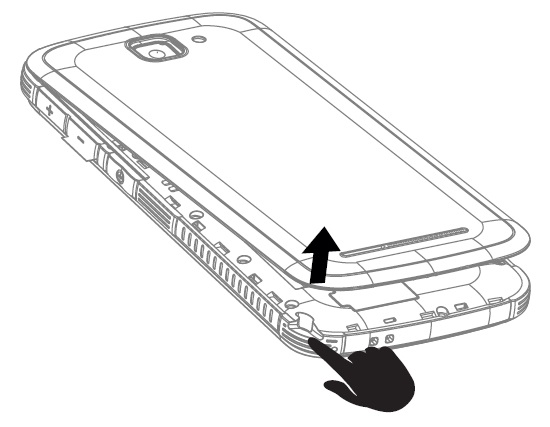

Lift the back cover, using the tab located at the bottom of the telephone, and remove the battery.

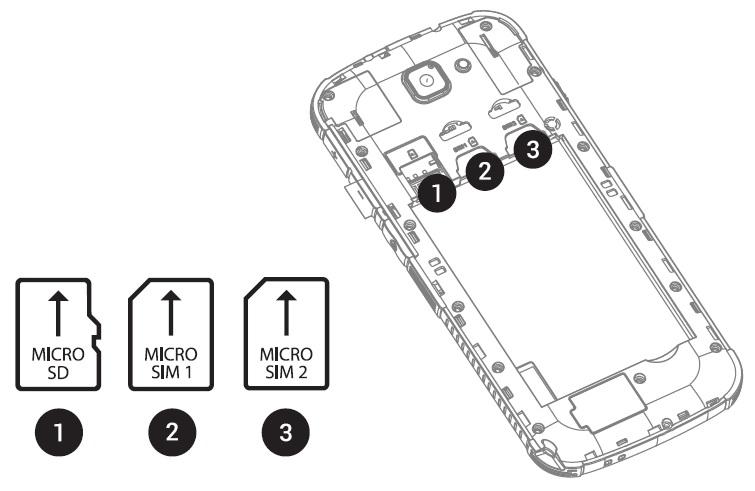

Insert the SIM card(s) and the SD card (if required) into the slots by lining up the gold contacts of the slots and the cards.

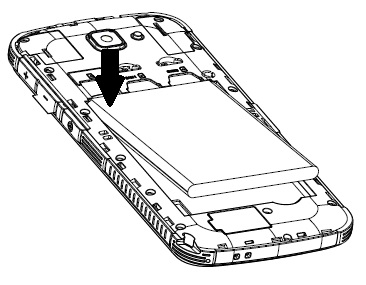

Insert the battery again by lining up the gold contacts of the telephone and the battery.

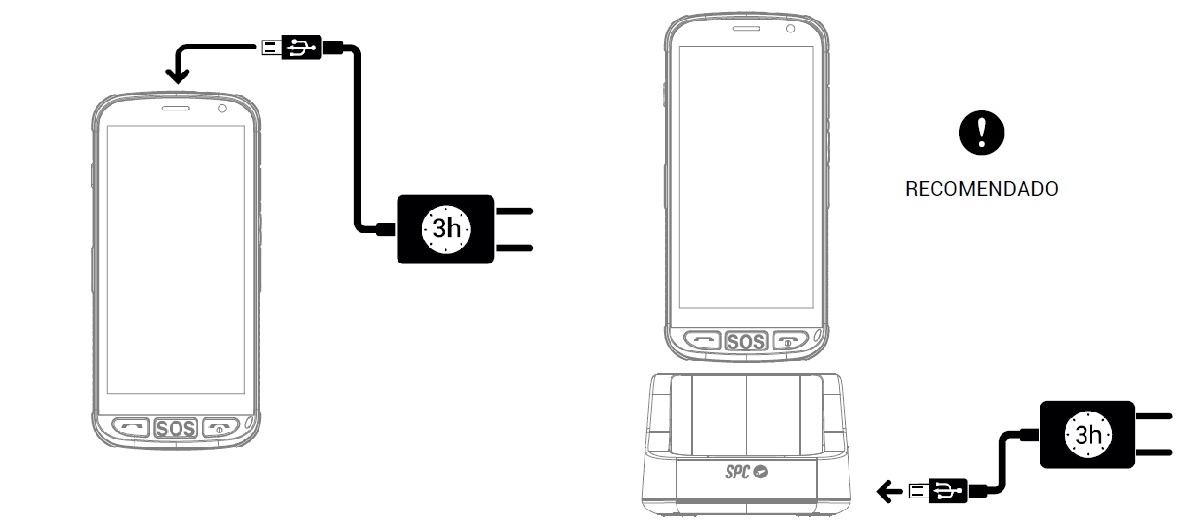

To charge the terminal, connect the cable to the telephone's micro USB connector located on top of the phone. Check the orientation of the connector and do not force the connection if it is not immediate.

You can also connect the cable to the charging dock. As before, check the orientation of the connector and do not force the connection if it is not immediate.




Before you start to use it, remember to remove the screen protector.

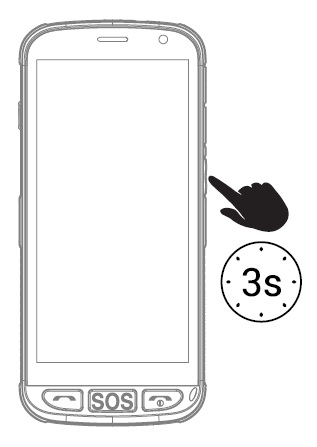

Press and hold the power key for a few seconds to turn on the telephone. Enter the PIN assigned to your SIM card.

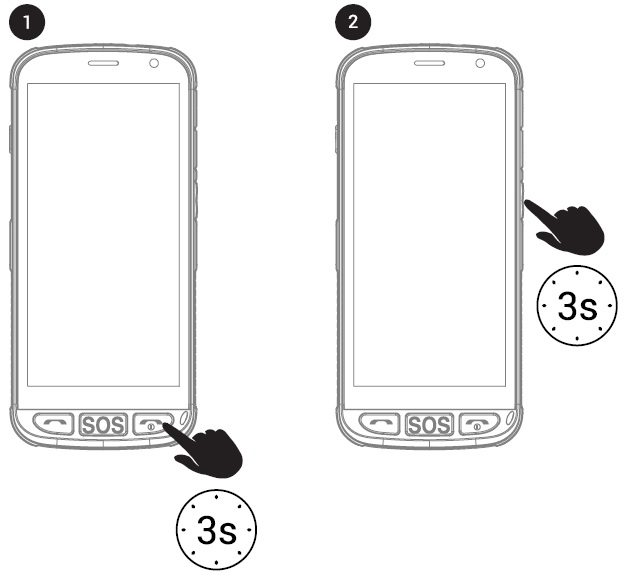

To turn off the telephone, press and hold this key for a few seconds or the 'End call' key.






NOTE: The personal identification number (PIN) protects the SIM cards from unauthorised use. The PIN unlocking key (PUK number) allows you to unlock a blocked PIN. The PIN and PUK are provided with the SIM card. For more details, contact your operator.
