Installation and first use

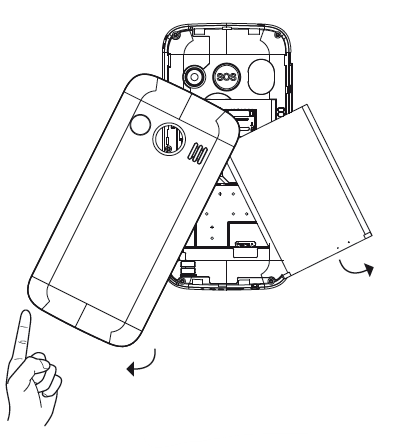

Lift up the battery cover and battery, using the tab located on the   bottom of the phone and on top of the battery compartment.

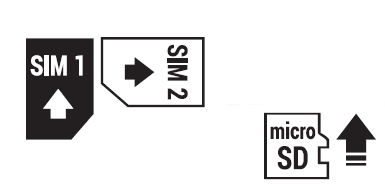

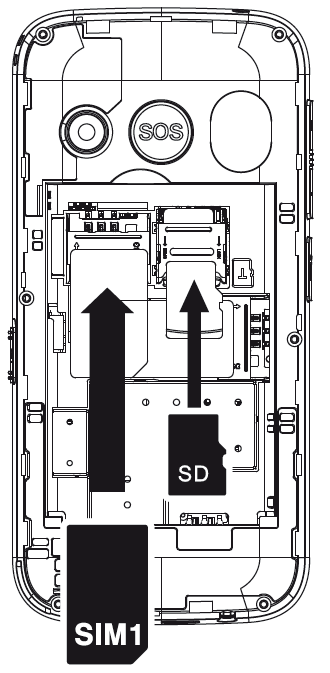

Insert the SIM card(s) by matching the gold contacts on the phone   and the card(s).

Insert the battery by matching the metal contacts on the telephone and the battery.

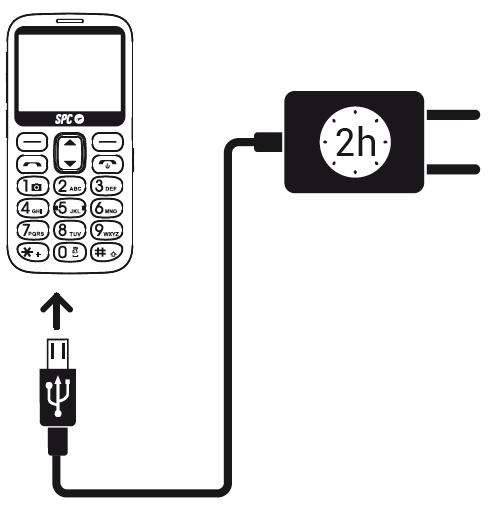

To charge the terminal, connect the power supply to the phone's micro USB connector   located on the bottom of it. Check the orientation of the connector   and don't force the connection if it is not immediate.

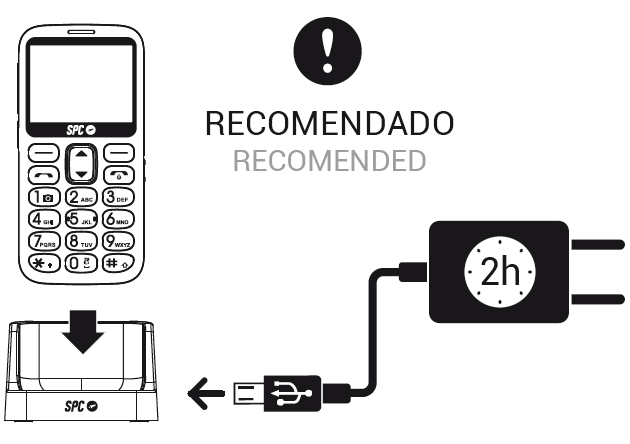

You can also connect the power supply to the charger unit. As before, check the orientation of the connector and do not force the connection if it does not connect immediately.

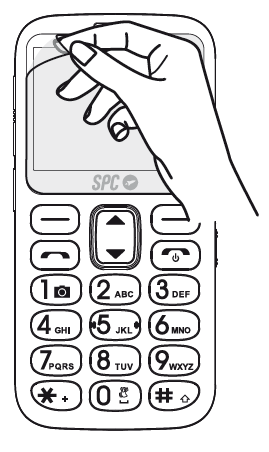

Before you start using it, remember to remove the screen protector.

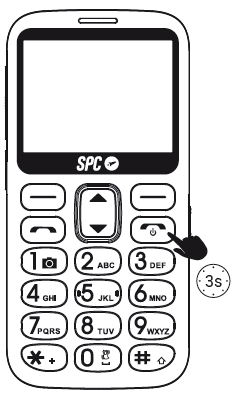

Press and hold the power key for a few seconds to turn on the telephone. Enter the PIN that appears on your SIM card. If two SIM cards are inserted, the telephone will ask for the PIN of SIM 1 first and then SIM 2.

Press and hold this key to turn the telephone off.

NOTE: The personal identification number (PIN) protects the SIM card from unauthorised use. The PIN unlocking key (PUK number) allows you to unlock a blocked PIN. The PIN and PUK are provided with the SIM card. For more details, contact your operator.



"
