The SPC SMART CLAN application has 5 menu options at the bottom, to access the different functions of the watch and the application.
Chat
This menu has three options:
1. Video call: By pressing this option, a video call is made to the watch.
The video call is made over data, with mobile network or Wi-Fi if configured.
On the watch, only the image of the remote is seen. In the app, both images of the remote watch and the own terminal are seen.
2. Chat with the watch: Allows to establish audio conversations, text, and emojis.
From the application, text messages and emojis can be sent using a keyboard, and voice by holding down the bottom button:
3. Family Chat: It's a group chat, of the Senior with all the other family members/caregivers.
Notifications appear for own chats, not those made by the child/senior with other members of the family group.
In the upper right corner appears the icon to access the Notifications screen. This screen can also be reached from the bottom menu.
NOTE: The maximum number of text chat characters is 30.
Notifications
At the top right of the Chat screen, there is a button to access Notifications.
On this screen, notifications from the watch appear chronologically ordered.
Locate
This screen shows the watch's position on the map. This position is acquired according to the configured Positioning Mode.
The connection can be forced manually by requesting the positioning, pressing on “Current Position”:
The watch icon shows the connection status between the app and the watch.
If it is green as in the figure, it means it is connected at that moment. If not, it means there is no connection at that moment. It should be noted that the watch is not permanently connected, only when necessary.
If you cannot connect, first check that the terminal has a correct Internet connection. If so, the watch is not connected (out of coverage, for example).
On the left side of the screen, we have an icon showing the battery charge status of the watch:
In the upper right, we have the following buttons:
- Button to switch to satellite view:
Switches between map view and satellite image view.
- Button to consult the historical trajectory:
Accesses positioning data from today, yesterday, and the day before yesterday, selecting the buttons at the top.
At the bottom, there are controls to play the trajectory, changing the speed and stopping at any of its points.
On the right, buttons to zoom in and out of the map.
- Button for additional functions:
- Find watch: Opens the Maps application to find a route to the watch.
- Positioning mode instructions: displays a text explanation of how localization is performed.
- Positioning mode:
- Normal mode: every 9 minutes.
- Energy-saving mode: Every hour.
- Sleep mode: Manually obtains the positioning.
The localization times are approximate (in 9 minutes, for example, it can vary by a few minutes)
It is possible that the location position is not given for several reasons:
- Poor GPS coverage. For example, inside a vehicle or at high speed.
- The watch is stopped, without movement.
- The watch does not have a connection.
The watch will perform the positioning according to the configured frequency. The shorter the positioning time, the higher the energy consumption of the watch.
Due to energy-saving mode, the positioning log is limited. If improvement is needed, other positioning modes can be configured. (Reduces the update time)
During positioning, the watch chooses the most suitable positioning method according to the current environment, the user does not need to manually choose the positioning method.
Supports two types of satellite positioning: GPS and GLONASS, the best accuracy outdoors in an open area is about 10 meters, but indoor positioning is not good.
The watch collects Wi-Fi access points in its vicinity and calculates its own position through the Wi-Fi module, the positioning accuracy is 50 meters.
The watch obtains its position information through the mobile telecommunications operator's network (such as the GSM network), the positioning accuracy is generally within 500 meters.
A-GPS is a technology that combines network station information and GPS information to position mobile stations, this technology improves the performance of the positioning system, making it faster. The accuracy of this technology is about 10 meters.
Position is obtained as an auxiliary through the acceleration sensor to obtain the current movement status of the watch.
Phone
This screen directly accesses the phone dialer of the own terminal and allows making calls to the watch or to any other phone number.
This screen will be different depending on the phone dialer of the application's terminal.
Health:
Here appear the functions associated with the health of the watch user.
There are three parameters: Heart rate, Blood oxygen saturation, and Steps.
Heart rate:
The screen displays the last measurement made with its date and time, a classification, informative text, last seven measures, and a button to take the measure from the application.
Resting heart rate: people normally have between 60 and 100 beats per minute at rest
Heart rate during exercise: analyzes the state of body movement according to the heart rate range and chooses the most appropriate heart rate range to achieve a better effect
By pressing the top right button, you access the detail of the history of last measurements.
Blood oxygen saturation:
Blood oxygen saturation is the percentage of oxyhemoglobin volume bound to oxygen in the blood relative to the total hemoglobin volume that can combine. It is, therefore, the concentration of oxygen in the blood, which is an important physiological parameter of the respiratory cycle.
Normal arterial blood oxygen saturation is approximately 96 ~ 99%
The screen displays the last measurement made with its date and time, a classification, informative text, last seven measures, and a button to take the measure from the application.
By pressing the top right button, you access the detail of the history of last measurements:
Steps:
Displays the total number of steps taken daily, with screens to view weekly and monthly data.
In addition to steps, the energy expended in Kilocalories, the distance in meters traveled, and the minutes of activity are calculated and displayed. To be able to make the calculation, the values of Gender, Height, and Weight of the watch user, defined in the device profile, are used.
More:
This screen displays various functionalities and configuration screens:
Personal Center
Contains basic information of the watch and Senior information: Name, photo, IMEI, phone number of the watch, QR Code of the watch, firmware version, Gender, Birthday, Height, and Body Weight:
By pressing on Device Information:
This information is editable. An avatar can be set with a predefined icon or a photo from the phone or gallery.
The QR Code of the watch is the same that appears in the Link option in the own watch and, in this case, serves to give linking permission to a new family member. This same code appears in the Link Member function, later on.
Steps
On the Personal Center screen appears the total number of steps taken during the day:
By pressing on this information, a new card appears with the report of steps taken in the last 7 days.
The default daily step goal is 8,000 (daily figure recommended by various health organizations). By pressing on Settings at the top, a selector bar appears allowing to vary this figure to another desired value:
Link member
This function allows adding other members to the family group so they can view and manage the watch activity. The family member who has made the first link with the watch is the Group Administrator.
To link another family member, the administrator must select the option “Invite a family member”. The family member must install the SMART CLAN application, sign up in the application with an email and password, and link to the group by scanning the QR code that appears on this screen of the Administrator.
Another way for a family member to link to the group is by scanning the QR of the own watch and waiting for the administrator to accept the linking request. But in this case, the intervention of the watch is not required, only the approval of the administrator.
NOTE:
- Up to a maximum of 8 members can be linked to a group.
- A family member can link multiple watches, without limit.
Contacts
Here the contacts that appear on the watch are defined.
Each contact contains:
- Avatar: Icon or photo of the contact.
- Name: there are a series of predefined names and also the option to customize them.
- Mobile number: The contact's phone. It can be a mobile or landline number.
- Emergency call (SOS): It can be selected that the contact is for emergency.
Up to 15 contacts can be added to the Contacts agenda. Contacts can be deleted one by one.
By pressing on each contact, you can see the details and edit their information.
The Avatar can be a pre-established icon by the application or a photo obtained from the phone's camera or gallery.
To add a new contact, press the top right button. Two options appear: Add contact and Sort Contacts:
If you select Add Contacts:
If you select “Sort Contacts” you enter the contact classification screen:
Allows to order the contacts as you wish. To do this, you must press on the three lines located to the right of the contact and drag to the desired position.
By reordering the contacts, you can define the order of call during the emergency SOS calls.
SMS received by the watch
A list of SMS messages received by the watch appears.
Each message displays the phone number, message content, and time of the message, ordered from most recent to oldest.
Block unknowns
When this function is enabled, it only allows calls to the watch from established contacts. It will give a busy signal to phone numbers that call it and are not Contact.
A notification will be sent to the application when a call from an unknown is received, as a warning or to facilitate confirmation by the tutors by adding it to Contacts.
By default, it is disabled. To activate it, press the ON button at the bottom.
Scheduled On/Off
Allows setting a time for turning the phone on and off. For example, to turn it off at night.
By default, it is disabled. To activate it, set the time and minute for turning on and off, and press the ON button at the bottom.
NOTE: For the turn on to work correctly, it is necessary to remove the PIN from the phone's SIM. Otherwise, the phone will stop at the PIN request and will not connect automatically.
Auto-answer
Once this function is activated, the watch automatically answers calls from all its contacts after one ring.
By default, it is disabled. To activate it, press the ON button at the bottom.
Power Saving
With low battery, the watch enters power-saving mode to stay connected for longer.
In this mode, only answering calls is allowed. When the watch is sufficiently charged, it will return to normal mode.
By default, it is disabled. To activate it, press the ON button at the bottom.
Security Perimeter
This screen defines the security perimeter of the watch. Once defined, exceeding this perimeter will trigger a notification to the caregivers alerting them of the incident.
Use the slider to define the radius, between 500 meters and 1 km. Then, select Save, giving a name to this perimeter (home...).
Once defined, press Save, a perimeter name is requested:
Up to 2 security perimeters can be defined in total for all caregivers. That is, 2 per Senior.
Call Log
A chronologically ordered list appears with received and made calls along with their duration.
Watch Settings
This section contains various watch settings:
Dial Pad:
Allows disabling the watch's dial pad. By default, it's enabled. If disabled, the dial pad option disappears in Calls on the watch.
Remote Shutdown:
Shuts down the watch remotely. The watch remains off, it cannot be turned on remotely (no connection), therefore, it must be turned on by the watch user.
Remote Restart:
Shuts down and turns on the watch.
NOTE: For the startup to work correctly, it's necessary to remove the SIM card PIN. If not, the phone will stop at the PIN request and will not connect automatically.
Prohibit Shutdown:
Does not allow shutdown from the watch, a warning message "Do not turn off!" appears on the watch. It can only be turned off remotely through the application.
By default, it is disabled.
Daylight Saving Time:
This option allows manually activating daylight saving time in countries that implement it. By default, it's set to NO. To manually activate it, select YES.
Time Zone Adjustment:
By default, it's set to Central European Time Zone, GMT+1.

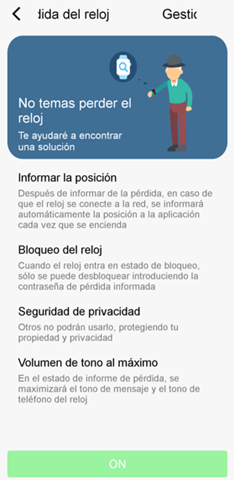

Loss of Watch
After activating the watch loss function, the watch will lock and cannot be used normally.
When the watch enters lock state, it can only be unlocked by entering the configured loss password.
In this loss lock state, if the watch connects to the network, the position will be automatically reported to the application.
In the loss report state, sounds are set to maximum: the message tone and ringtone volume of the watch's phone will be maximized.
By deactivating this function from the application, the watch loss report function will end and return to normal operating state.
Alarm Settings
This function allows defining alarms for the alarm and reminder function.
To add an alarm, press "+". Edit the alarm:
Up to 4 alarms can be set.
Find Watch
Allows searching for the watch in case of loss nearby.
When the request is sent, the watch rings and a message "I'm here!" appears on the screen. Pressing "confirm" on the watch stops the ringing.
App Settings
Message notification: to enable or disable notifications on the phone.
Change password: Change the login password for the account.
Clear cache: Deletes local chat and message data.

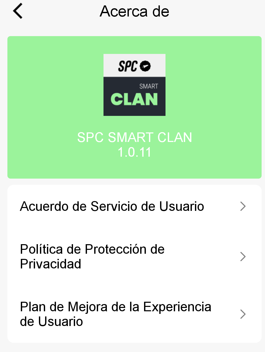

About: Contains various elements:
In these sections, access is given to the details of the User Service Agreement, Privacy Policy, and User Experience Improvement Plan.
Logout: Logout on this device.
To change the application language, first log out and then, on the login screen, the language change option appears.
Link and Unlink
Has two functions:
- Contains the linking QR code of the currently linked watch. This allows another caregiver with the application to link to the watch by scanning the code here, granting permission if they are an administrator.
- The Unlink button at the bottom allows unlinking our application from the currently linked watch.
“+” Button
In the top right corner of the "More" menu, there are two icons, one for accessing the Notifications, already discussed, and the other "+" for directly accessing various functions:
The "Change Watch" function allows switching between various linked watches. For example, in the case of a parent who has linked the watches of several children and also the senior parent's watch.
The "Add Watch," "Unlink Watch," and "Watch QR Code" functions are shortcuts to previously described functions.
