1. Fully Charge the Watch:

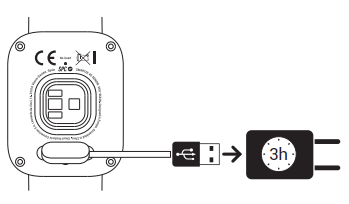

Connect the included charging cable to a standard USB charger (5 volts) and to the magnetic charging terminals of the watch, as shown in the image.
During charging, briefly press the power button to display the battery icon with the charging status.
When the charge reaches 100%, the message "Charge complete" and the fully charged battery icon in green appear.
The estimated charging time with the recommended standard charger is less than 3 hours.
Recommended charger: Input 100-240Vac 50/60Hz; output 5V 1000mA.
2. Insert the SIM Card:
It is recommended to deactivate the PIN of the SIM card before inserting it.
The watch supports the use of SIM cards with PIN, but it is advised to remove the PIN to facilitate the startup of the watch for the user and avoid having to enter a PIN.
This PIN cannot be removed from the watch, for this you can use any mobile phone.
On the left side of the watch is the SIM card tray. Remove it with the help of the extractor tool included in the box, insert the card, and reinsert the tray into the slot. The card is in NanoSIM format (the smallest SIM card format). To insert it correctly, observe the position of the notch at one of its corners.
Extractor tool:
3. Start the Watch:
On the right side, you will find the watch's power button. Hold it down for a few seconds until the screen lights up.
After startup, if the SIM card has a PIN, the watch requests it. Sometimes you have to wait a few seconds for the watch to finish initializing before you can enter the PIN. Enter the PIN and press the checkmark box.
The language selection screen appears: English, French, Portuguese, Spanish, Italian, and German. Spanish is selected by default. Confirm by tapping on the chosen language.
The main screen appears. Wait a few seconds for the device to start up completely and connect. By swiping down the screen, you can see the status bar:
At startup, the name of the operator appears for a few seconds when starting or restarting, then disappears and makes room for 4G to make room for the other elements in the status bar.
4. Watch Pairing:
The watch must be paired with a mobile phone (Android or iOS) with the SMART CLAN management app installed. Refer to the SMART CLAN section for installation.
On the watch, while on the home screen (the one showing the time), swipe from right to left to navigate through the menus until you find one labeled "Pair".
Tap on it and a QR code will appear along with an alphanumeric code associated with the IMEI of the watch at the bottom. If this code does not appear, check the connection of the watch (mobile coverage or Wi-Fi) and try again.
From this step onwards, continue setting up the pairing in the SMART CLAN app. Refer to this section.
