If you want the screen to be illuminated and the M1, M2 and M3
memories not lost, open the battery compartment (31) and insert 4
x 1.5 V AA (LR06) batteries.
Connect one end of the curly cable to the TEL LINE jack on the back
of the phone (5) and the other end to the phone jack.
Connect one end of the handset to the cable jack on the bottom of
the handset (3) and the other end to the other cable jack on the left
side of the phone, (4). Make sure you hear the dial tone when you
pick up the handset.
To complete the installation, select one of the two mounts: Table or
wall mount (hanging on the wall).
ON A TABLE
For table mounting, the phone is equipped with a detachable part
that increases the tilt of the device on the table. Insert the stand (27)
into the rear recesses of the phone (28) and press until the stand is
firmly seated.

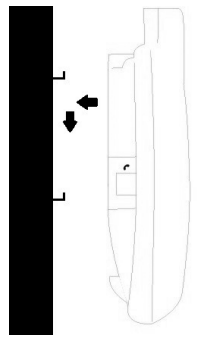

ON A WALL
This device can also be mounted on the wall or hung. For this you
need to:
• Remove the stand (27).
• Drill the holes in the wall at a distance of approx. 77 mm, as shown
in the drawing below:
• Insert the screws. Use screws of the type: 3.5 x 25KA d=7mm.
• Insert the unit into the wall mounting screws (29) and make sure
that it is perfectly attached.
• To keep the handset hanging, you need to remove the wall bracket
(12), rotate it 180°, and reattach it with the flange facing up.
