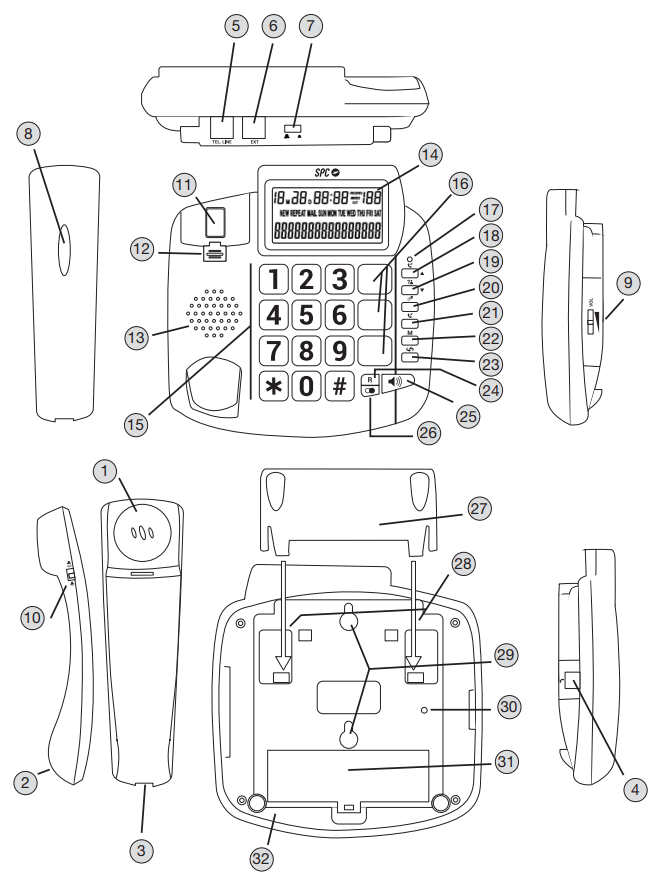

Position of controls



1. Earpiece.
2. Microphone.
3. Curly cable housing in handset.
4. Connection for curly telephone cord in the housing, .
5. Connection for main cable, TEL. LINE.
6. Connection for the telephone line cable of the additional telephone, EXT.
7. Ring volume .
8. Flashing light.
9. Handsfree volume .
10. Earpiece volume .
11. Hook.
12. Bracket for wall mounting.
13. Speaker.
14. Screen.
15. Numeric keypad.
16. Direct memory .
17. Operating control lamp.
18. key. List of received calls. key, next.
19. key. List of missed calls. key, previous.
20. key. Delete/Exit.
21. key. List of made calls.
22. M key. Menu (configure). Memory (program).
23. key. Call back.
24. R key.
25. key. Hands-free system.
26. key. Redial.
27. Stand.
28. Connections for the stand.
29. Screw holes for wall mounting.
30. Bell.
31. Battery compartment.
32. Hands-free microphone.
